Detail Information
|
Product Details:
|
|
| Place of Origin: | shenzhen |
|---|---|
| Brand Name: | OEM |
| Certification: | CE FCC |
| Model Number: | P2.604 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | negotiate |
| Packaging Details: | flight case |
| Delivery Time: | 15-20 days after receiving deposit |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
Detail Information
Product Description
Product Description
led screen rental Los angeles Atlanta P2.604 indoor stage rental led display led wall
Specifications:
| Item | Parameters |
| Model | P2.604 |
| Pixel Pitch(mm) | 2.604mm |
| Physical Density (dot/sqm) | 147,456 |
| LED Configuration | 1R1G1B |
| LED Type | SMD2121 |
| Module Size (mmxmm) | 250x250mm |
| Module Resolution (PXxPX) | 96x96dots |
| Scanning mode | 1/32 scan |
| Brightness(cd/sqm) | 1300nits |
| Grey Scale | 14bit |
| Refresh Rate(Hz) | 3840Hz |
| Drive Mode | Constant Current Drive |
| Horizontal Viewing Angle(Deg) | 140 |
| Vertical Viewing Angle(Deg) | 120 |
| Cabinet Resolution(PXxPX) | 192x192dots |
| Module Power Consumption(w) | 40w |
| Cabinet Max Power Consumption(w) | 160w |
| Cabinet Average Power Consumption(w) | 50w |
| Cabinet Size(mmxmm) | 500x500mm |
| Cabinet Weight(kg) | 7.3KG |
| Cabinet Thickness(mm) | 85mm |
| Cabinet Material | Magnesium Alloy |
| Color(M) | 16.7 |
| Input Voltage | AC110V-220V +/-10% |
| Refresh Frame Frequency(Hz) | 50-60 |
| Protection Level | IP45 |
| Working Environment | Indoor |
| Working Temperature(℃) | -40°-+60° |
| Storage Humidity(RH) | 40%-60% |
| Life Span(H) | 100,000hours |
Cabinet detail pictures
testing pictures
Packing

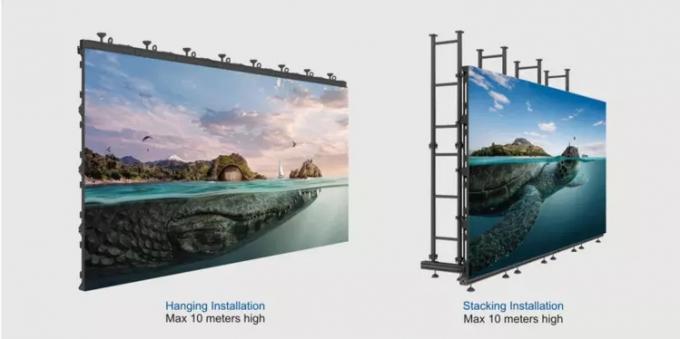

installation guide
Features:
1) Extremely lightweight and thin thickness.
Thickness less than 90mm, weight 8kgs, ahead of other suppliers.
2) Mixed splicing
500x500mm and 500x1000mm cabinets can be easily spliced up and down, greatly satisfying different needs of assembling.
3) Quick installation and disassembly
The cabinet right and left fast positioning pin design to prevent the dislocation of the cabinets up and down during installation, easy to install and disassemble.
4) Anti-oxidation treatment
The contact surface between cabinets is treated by anodic oxidation.
5) Curve design
Cabinet adopts curve fast locks, can adjust the connection radian freely.
6) Durable Materials
The cabinet is made of magnesium alloy, strong and durable, resistant to friction and bumping.
Thank you for choosing our products! We are always trying our best to provide you the best quality
product as well as the best service for you.
