Indoor full color background decoration Stage Rental LED Display P3.91
Products Features:
1. Equipped with intelligent lighting equipment and adaptive adjustment of environment, will not affect by the ambient light strong display effect and environmental protection and energy saving for Rental LED Display.
2. Any direction, any size, any shape can be jointed presenting perfect seamless visual effect;
3. Leasing LED video screen with die-casting aluminum frame design, screen is super light and thin, saving space and costs, fashionable and beautiful;Adopting die-casting aluminum improves the heat dispersion, prolonging the lifetime of the led display.
| Module | NO. | Item | Parameter |
| 1 | Module Model | SH-P3.91(Indoor) | |
| 2 | Pixel pitch | 3.91mm | |
| 3 | Module dimension | 250mm*250mm | |
| 4 | Module density | 65,410pixel/sqm | |
| 5 | Module resolution | 64*64dots | |
| 6 | LED encapsulation | SMD 3 in1(2121) | |
| 7 | Pixel configuration | 1R1G1B | |
| Cabinet | 1 | Dimension | 500mm*1000mm*80mm |
| 2 | Physical resolution | 128*256dots | |
| 3 | Module quantity | 8PCS | |
| 4 | Weight | 13kg/PCS | |
| 5 | Material | Die-casting aluminum | |
| 6 | Driving method | Constant current+1/16 scan | |
| 7 | Brightness | ≥1500nits | |
| 8 | Max power consumption | 800W/SQM | |
| 9 | Average consumption | 400W/SQM | |
| 10 | Frame frequency | 60Hz | |
| 11 | Refresh frequency | >2500HZ | |
| 12 | Gray level | 65536 for each color | |
| 13 | Input Voltage | AC100-120V AC200-240V | |
| 14 | Power supply | 5V/60A 2 PCS | |
| 15 | Viewing angle(H/V) | 120°/ 120° | |
| 16 | viewing distance | 5m-100m | |
| 17 | Working environment | Temperature: -20°C~ 60°C | |
| Humidity:10%~90%RH | |||
| 18 | Control system | Synchronous or Asynchronous Control system | |
| 19 | Display function | Videos | |
| 20 | Certificate | CE Certification (SGS) | |
1. Advertising LED display screen
LED display can perfect combine text, pictures, video. Commerical adversting.
Applied in main street, shopping mall, Plaza Park, outstanding buildings, landmarks, airports, stations and so on.
2. Stadium LED display screen
In stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation.
Use in football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium.
3. Transportation LED display screen
Widely use in the busy streets of city or on the highway.
Screens display weather, traffic regulations, to remind drivers to drive safely.

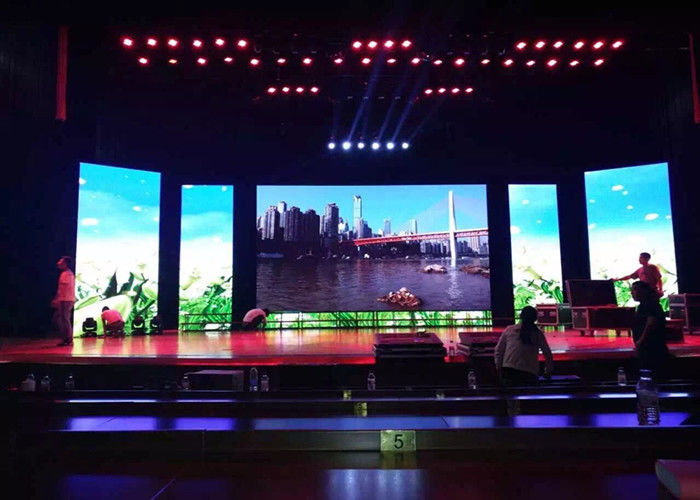

4. Stage rental LED display screen
Easily installed, removed and transport.
Widely used in stage show, concert, theater, party, and other entertainment event as background.
