Detail Information
Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HJY |
Certification: | CE FCC |
Model Number: | P4 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1sqm |
Packaging Details: | wooden case or flight case |
Delivery Time: | 15-20days after receiving deposit |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 3000sqm per month |
Detail Information |
Detail Information
Product Description
Product Description

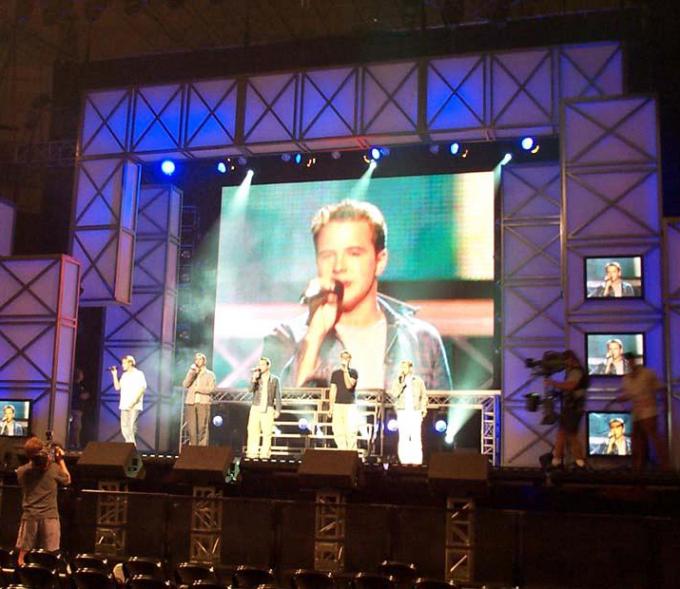

Energy saving Stage Rental LED Display indoor P4 slim panel
Features
High intensity and can be adjusted, so can meet the request of the customers according the application environment;
High resolution,best equality and excellent consistency of light commendably solve the problem of the mosaic;
Big viewing angle to 110 degree at horizontal line, 45 degree at vertical line, you can see at every angle at this viewing range, no picture deformed, no color excursion;
To pictures and character, have clear, exquisite and real display effect;
Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Module | Pitch/mm | p4 |
Module size/mm | 256*128mm | |
Density of pixel | 62500dots | |
Pixel composition | 1R1G1B | |
Led encapsulation | SMD2121 | |
Resolution of module | 64*32 | |
Main | Optimum viewing distance | 20-50m |
View angle/º | 140H,140v | |
Max Power consumption/W/M2 | 750w | |
Size of cabinet/mm | 512*512mm | |
Driving method | 1/16 scan constant current | |
Refresh rate HZ/S | ≥1200 | |
Operation of Environmental Temperature/ºc | below 30 to above 60 | |
Ip rating | Ip65 | |
Working voltage | 110-220VAC+/-10% | |
Control system | sending card,receiving card and Hubs | |
Average of non-failure life | >5000h | |
Life span | >100000h | |
Functionless dot rate | <0.0001 |
Our service
1, We can produce some LED Display Module you want size or color,and print your logo.
2, you can order some quality,such as 1pcs,or above.
3, 2 years quality warranty, maintenance for whole life time.
4, We can provide free some modules and some materials such as cable, LED lamp, IC ect as parts to repair if there is something wrong during this period.
5, we can provide free training about how to maintain and repair in our factory,or we can take a video about the operating and repairing way to user; Provide remote assistance and CAD drawing.
6, Our engineer will teach you how to install and test the software if you meet problems.
FAQ
1. Does your company provide onsite installation and testing service?
Yes, we provide onsite installation and testing service per quest and for all countries.
2. Whats the warranty service?
We provide two years warranty service and will repair the components with quality issue thats not caused by human.
3. Can your company customize the cabinet with client's logo and color?
Yes, we can.
4. What packages does your company provide?
Carton box, wooden case and flight case.
5. Can your company customize the shape of LED screen?
Yes, we do supply irregular and unconventional shaped LED display screen.
