Quality Stage Rental LED Display & Outdoor Rental LED Display Manufacturer

P10 Outdoor Rental LED Display IP 65 Waterproof Aluminum Die Casting Cabinet factory

Product Details:
Place of Origin: China
Brand Name: HJY
Certification: CE FCC
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Packaging Details: Flight case
Delivery Time: 15-20 days after receiving deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000sqm/month

Detail Information

Detail Information

Dot Pitch: 10mm Pixel Configure: 1R1G1B Pixel/SQM: 10000Pixel/m² LED TYPE: SMD3535 Module Resolution: 32Pixel * 16Pixel Refresh Rate: > 1920HZ

Product Description

Product Description

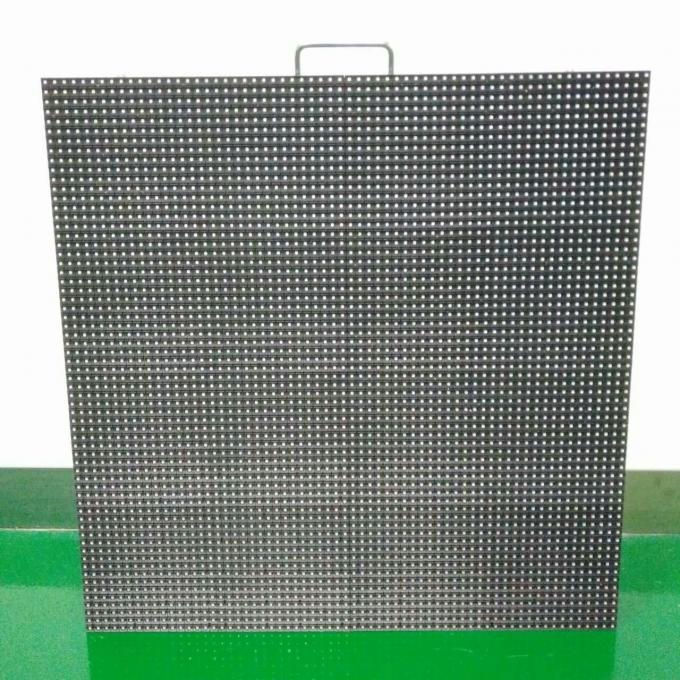

P10 outdoor rental led display,aluminum waterproof die casting cabinet led



display





configure Specification Parameter
Pixel Dot Pitch 10mm
Pixel Configure 1R1G1B
Pixel/SQM 10000Pixel/m²
LED Lamp LED TYPE SMD3535
Led Brand Kinglight or Nationstar
Wavelength & Brightness Red:620-622.5nm;>900mcdGreen:520-522.5nm;>1800mcd Blue:465-467.5nm;>300mcd
Module Module Resolution 32Pixel * 16Pixel
Drive Mode Constant Current Drive
Scanning Method 1/4Scanning
Module Dimension 160mm(Width)x160mm(Height)
Drive IC MBI5024(Or other Similar IC)
LED & Drive Composition Light-Drive Separation
Refresh Rate >2400HZ
Cabinet Cabinet Thickness 100mm
Cabinet Construction Normal Standard Cabinet
Cabinet Assembly Connecting Sheet
Cabinet Color(Front/Back) Anodized Blue
Aviation Plug wp20
Maintenance Mode Back Maintenance
Cabinet Material Aluminium DIE CASTING CABINET
Cabinet Dimension 640X640X80mm
Power Supply Power Supply
LED Screen Viewing Angle Horizontal : 110±10°Vertical: 60±10°
Brightness >7500cd/m²
Best Viewing Distance 10~300m
LED Life 100,000Hours
Maximum Power 750w/m²
Average Power 300w/m²
Input Voltage 220V±10% Or 110V±10%
Operation Environment Temperature: —20°C~60°C; Humidity: 10%~95%
Protection Grade IP 65
LED Screen Weight 30kg/m2









Our P10 outdoor rental led display,aluminum waterproof die casting cabinet led display advantages:



1. We guarantee all our products two years.



2. We provide technology training for free



3. After warranty , we also can offer you the parts for replacement at our bottom price.



4. After sales, if you have any problem about our product, you can feel free inform us your problem, we will help you solve the problem in the fastest time we can.





P10 Outdoor Rental LED Display IP 65 Waterproof Aluminum Die Casting Cabinet
