Detail Information
Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HJY |
Certification: | CE FCC |
Model Number: | P5 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1sqm |
Packaging Details: | Wooden case or flight case |
Delivery Time: | 15-20days after receiving deposit |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 3000sqm per month |
Detail Information |
Detail Information
Product Description
Product Description
High brightness Outdoor Rental LED Display P5 full color alum cabinet led
wall
Model Size
|
320mm*160mm
|

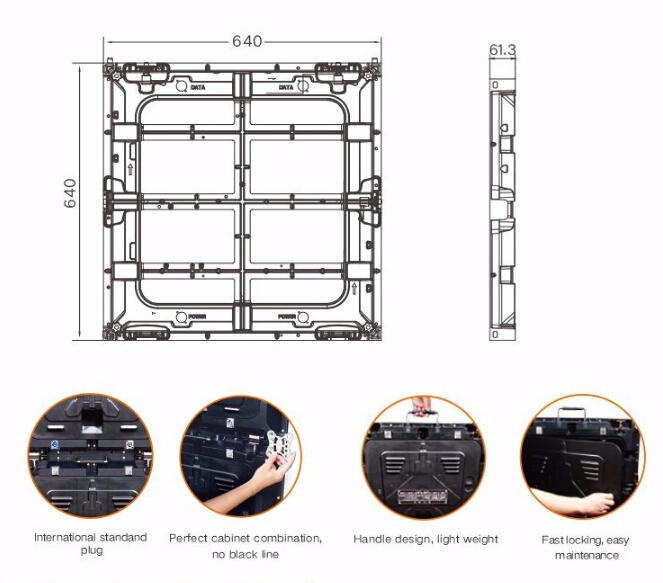

Dimension
|
640x640mm
|
Resolution(WXH)
|
64*32dots
|
Module Resolution
|
128*128dots
|
Pixel Pitch
|
5mm
|
Weight/panel(KG)
|
8.5kg
|
LED Type
|
SMD2727/2525
|
Power supply
|
300W
|
Parameter
|
|||
Brightness
|
≥5500cd/㎡
|
||
Viewing Angle
|
Horizontal :140° Vertical: 140°
|
||
Minimum Viewing Distance
|
5m
|
||
Gray scale
|
14bit level
|
||
Refresh frequency
|
1920HZ
|
||
Driving mode
|
1/8 scan constant current driving
|
||
Input power frequency
|
50 or 60 Hz
|
||
Input Voltage
|
110 ~ 240 Volt
|
||
Blind spot rate
|
<1/10000
|
||
Lifetime at 50% brightness
|
≥100000 h
|
||
Ingress Protection
|
IP65 Rating
|
||
Operating temperature
|
﹣20 ~﹢50 ℃
|
||
Operating humidity
|
10% ~ 90%
|
||
Control distance
|
CAT5 cable:<100 m; Single mode fiber:<10 km
|
||
Signal input format
|
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
|
||
Operating system
|
Windows (7/8/10)
|
Famous Brands Raw Material Selection
1) LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
Our service
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least two years warranty and a lifetime maintanance services.
