Detail Information
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HJY |
| Certification: | CE FCC |
| Model Number: | P5.95 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 15-20 days after receiving deposit |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
Detail Information
Product Description
Product Description

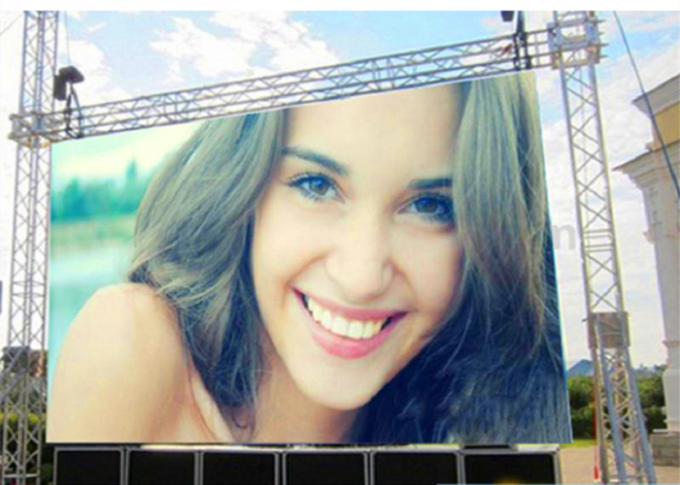

large image full color curve stage led display P5.95 outdoor rental led display 3 in 1
| No. | LED Type | SMD3535 |
| 1 | Pixel Pitch | 5.95mm |
| 2 | Scan method | 1/7 Scan |
| 3 | Driving method | MBI 5124 |
| 4 | Module Resolution | 42dots*42dots |
| 5 | Module dots | 1764dots |
| 6 | Module size (width*height) | 250*250mm |
| 7 | cabinet size (width*height) | 500*500mm/500*100mm |
| 8 | Cabinet resolution | 84*84/84*168dots |
| 9 | Pixel Density | 28224dots/m2 |
| 10 | Cabinet raw material | Aluminum |
| 11 | Brightness | 6000cd/ m2 |
| 12 | Refresh Rate | >1920Hz |
| 13 | Repetition Frequency | 60fps |
| 14 | Input Voltage | AC220V/50Hz or AC110V/60Hz |
| 15 | Power consumption(Max/Average) | 1036/415W |
| 16 | Weight | 13kg/pcs |
| 17 | Life span | >100,000 hours |
| 18 | IP degree | IP65 |
| 19 | Working temperature | -20~60 |
| 20 | Control method | synchronous or asynchronous |
Module Photos:250mm*250mm
Cabinet Photo: 500mm*1000mm/500*500mm
The unique hexagon structure design, flat and firm
The back of the cabinet modules adopts the hexagon structure design concepts. This kind of aluminum structure ensures the feature of firmness and flatness to the largest degree. The whole screen is of typical feature after being assembled.
HD image brings you more perfect visual experience
The smallest pixel pitch of this series can be 4.81mm. The image is of very high definition. Even viewing in close range, the image will show no obvious pixel grainy. So it applies to outdoor installation perfectly.
Fast installation, high precision and less weight
Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight.
Brightness are adjustable
Be able to adjust the screen brightness(600-6000nits) based on ambient light changes, greatly reducing your opearating costs
Support All Media Format and Display Mode
Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.
