Detail Information
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HJY |
| Certification: | CE FCC |
| Model Number: | P5.95 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 15-20 days after receiving deposit |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
Detail Information
Product Description
Product Description

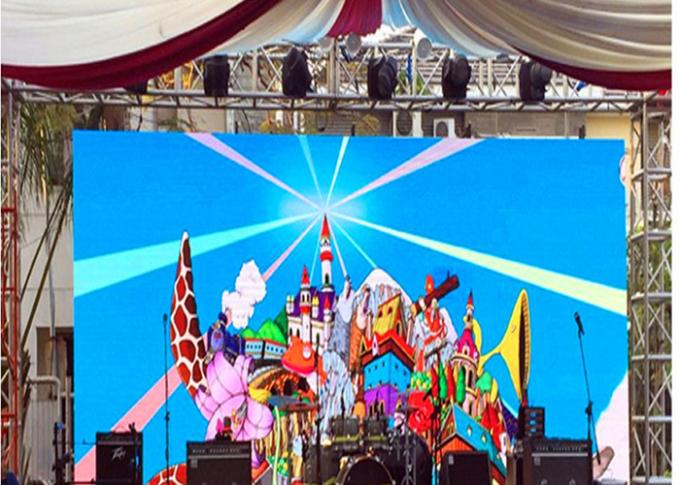

IP65 outdoor stage led display P5.95 outdoor led video wall outdoor rental led display
LED technical specs
| Die Casting Aluminum Rental Outdoor LED Display Screen | ||
| Module | Pitch/mm | P5.95 |
| Module size/mm | 250x250 | |
| Density of pixel/(dots/m2) | 28,224 | |
| Pixel composition | 1R1G1B | |
| Led encapsulation | SMD3535 | |
| Resolution of module | 42x42 | |
| Optimum viewing distance | ≥8-50m | |
| Main | View angle / ° | 160 H,140 V |
| Average power consumption/W/M2 | 260 | |
| Max power consumption/W/M2 | 520 | |
| Size of cabinet/mm | 500x1000x100mm/500*x500mm | |
| Resolution of cabinet | 84*168/84*84 | |
| Weight of cabinet/kg | 13kg | |
| Driving method | 1/7 scan constant current | |
| Frame frequency / Hz/S | ≥60 | |
| Refresh rate Hz/S | ≥1920 | |
| Luminance of white balance | ≥5000 nits | |
| Operation of Environmental Temperature/℃ | below 30 to above 50 | |
| IP rating | IP65 | |
| Working vlotage | 110-220 VAC/+/- 10% | |
| Grey scale/color | displaying colors≥16.7M(synchronized) | |
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |
| Control system | Nova (sending card,receiving cards and Hubs) | |
| Average of non-failure life | >50,00h | |
| Life span | >100,000h | |
| Functionless dot rate | <0.0001 | |
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
