Detail Information
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HJY |
| Certification: | CE FCC |
| Model Number: | P3 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1sqm |
| Packaging Details: | wooden case or flight case |
| Delivery Time: | 15-20days after receiving deposit |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000sqm per month |
|
Detail Information |
Detail Information
Product Description
Product Description

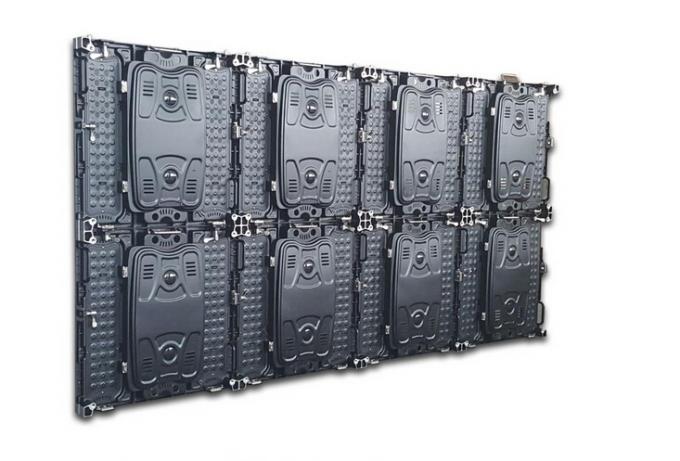

lighter easier stage Indoor Rental LED Display P3 mobile led sign
Features
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC, together with with the multi-circuit structure,achieves evenly-distributed current, low power consumption and fast heat dissipation.
4. Ultra-high brightness, low attenuation, high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
| Pixel Pitch | PH3mm |
| Module Resolution(W*H) | 160dots(W)*160dots(H) |
| Pixel Configuration | 1R1G1B(3 in 1) |
| LED Encapsulation | Black SMD 2121 |
| Pixel Density | 111111Pixel /m2 |
| Driving Method | 1/20 Scan |
| Refresh Frequency | ≥2880Hz |
| Driver IC | Special constant current IC with high refresh rate & high grayscale |
| Grey Scale | 14Bit(depending on the system and IC configuration) |
| Cabinet Size | 480*480mm |
| White balance Brightness | ≥800cd/ m2 |
| Color Temperature | 8000K±500(adjustable) |
| Viewing Angle | Horizontal 140°Vetical 120° |
| Optimal Viewing Distance | >3m |
| Working Voltage | AC 220V/110V±10% |
| Module voltage | DC4.2V |
| Max Power Consumption | 538W/sqm |
| Avg. Power Consumption | 269W/sqm |
| Lifetime | 50000 hours |
| Operating Temperature | –10~ 65 |
| Net weight | 8.5Kg/pcs |
Our service
Pre-sale service:
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or a whole screen
Q2. What about the lead time?
A:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for led Screen order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led Display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
