Detail Information
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HJY |
| Certification: | CE FCC |
| Model Number: | P8 front service led module |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000sqm/month |
|
Detail Information |
Detail Information
Product Description
Product Description

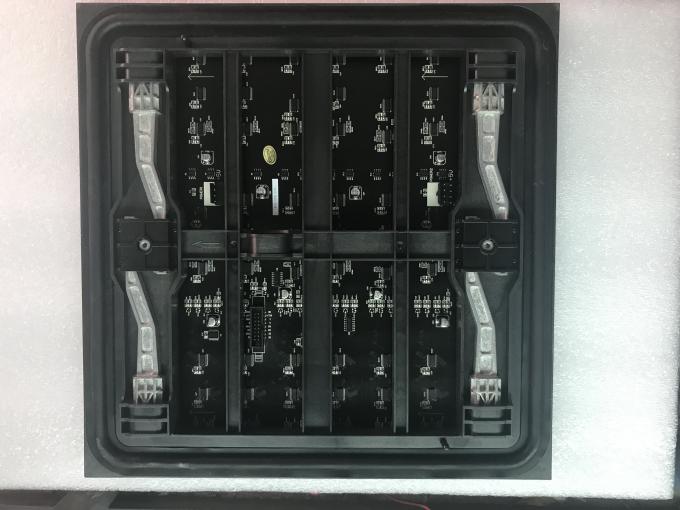

front service led display board price P8 outdoor 4:3 16x8ft led display for advertising
Module Parameter:
| Pixel pitch | 8mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 320*320mm |
| Module weight | 2kg |
| Module resolution | 40*40 dots |
Cabinet Parameter:
| Cabinet size | 1280*1280*200mm |
| Cabinet material | iron cabinet |
| Cabinet weight | 50kgs |
| Ingress protection | IP65 |
Whole Screen Parameter
|
Pixel density |
15625dots/m² |
|
Brightness |
≥6500 cd/m² |
|
Viewing angle |
H≥160° V≥160° |
|
Min.viewing distance |
8m |
|
Max.power consumption |
1200W/m² |
|
Avg.power consumption |
600 W/m² |
|
Working voltage |
110~220VAC±15% |
|
Interface |
HUB75 |
|
Colors |
16.7millon colors |
|
Gray level |
14-16bits |
|
Frame frequency |
≥60frames/s |
|
Refresh rate |
≥300Hz |
|
MTBF |
≥100000 hours |
|
Lifespan |
≥75000 hours |
|
Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
|
Operating temperature |
-10℃ ~ +40℃ |
|
Operating humidity |
10-80% no condensation |
|
Storage temperature |
-20℃ ~ +60℃ |
|
Storage humidity |
10-85% no condensation |
|
Video signal (with video processor) |
AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
|
Color temperature |
Adjustable by software |
|
Brightness level |
256 levels, automatic adjustment by software |
|
Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Installation and test:
Our service
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty time.
