Quality Stage Rental LED Display & Outdoor Rental LED Display Manufacturer

Meeting Room Indoor LED Display Screen , LED Video Display Board 220 / 110V factory

Product Details:
Place of Origin: China
Brand Name: HJY
Certification: CE FCC
Model Number: P3
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Packaging Details: wooden case or flight case
Delivery Time: 15-20days after receiving deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000sqm per month

Detail Information

Detail Information

Resolution: 111111dots/sqm Brightness: 1000cd/sqm LED Type: SMD1010 Drving Mode: 1/32 Scan Input Voltage: 220/110v Control System: Linsn Or Nova

Product Description

Product Description



Indoor meeting room use LED Advertising Display P3 full color led screen





Features of Indoor LED video wall rental P3 LED display for event rental:

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC, together with with the multi-circuit structure,achieves evenly-distributed current, low power consumption and fast heat dissipation.

4. Ultra-high brightness, low attenuation, high reliability and weather ability.

5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.



Application scopes of Indoor LED video wall rental P3 LED display for event rental: Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation, TVstation, stage show, concert and so on.



Pixel Information

Pixel Pitch

3mm

Technology

SMD 3 in 1

Pixel Density

111111 Pixels/m2

Pixel Configuration

1R1G1B

LED Module

Module Size

192 mm (Width) × 96 mm(Height) = 0.018432/m2

Module Resolution

64 pixels(Width) × 32 pixels(Height) = 2048pixels

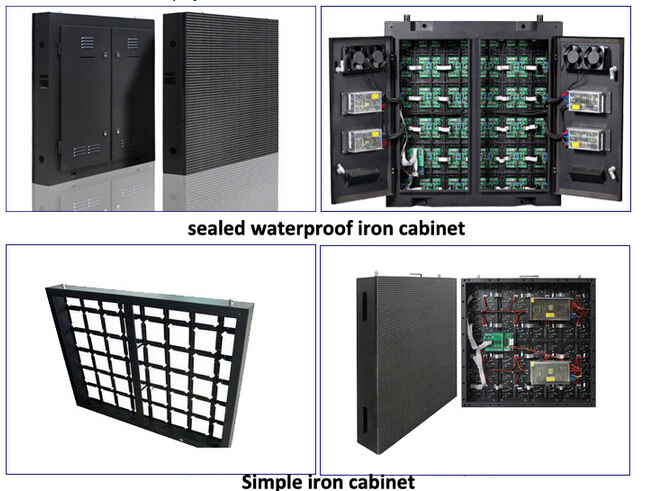

LED Cabinet

Cabinet Size

576 mm(Width) × 576 mm(Height) = 0.331776/m2

Cabinet Resolution

192 Pixels(Width) × 192 Pixels(Height) = 36864 Pixels

Total QYT Module Per Cabinet

3 Modules(Width) ×6 Modules(Height) = 18 Modules

Cabinet Weight

40kg

Cabinet Material

Steel or aluminum

Power

Input Voltage

100-240V AC, 50/60Hz

Max Power Consumption

800 Watt/m2

Avg. Power Consumption

400 Watt/m2

Viewing

White Balance



X= 0.33 Y= 0.33 5600°K(Adjustable up to 9000°K)



Brightness

≥1200cd/m2

Brightness Uniformity

Luminance Discrepancy < 5%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 1 mm

Best Viewing Angle

Horizontal:160°,Vertical:160°

Viewing Distance

3 - 45 meters

Ambint Conditions

Temperature Range

Storage:-40deg. to +85deg.; Working:-20deg. to +60deg

Operating Humidity

10%90%RH

Ingression Protection Grade

IP31

Processing

Scanning Mode

1/16 Scan

Refresh Frequency

180HZ-600HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Supported Networking

Through LAN/WAN, RS 232/RS485



PC based

Other

Life Span

50,000 - 100,000 Hours

Software

Linsn/Nova/Huidu



Product advantage



1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal.

2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.

3) The brightness can be adjustable to meet the need of changing requirement of customer in environment.

4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.

6) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger.

7) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours,and it’s easy to operate the system.
