Product Description
Product Description

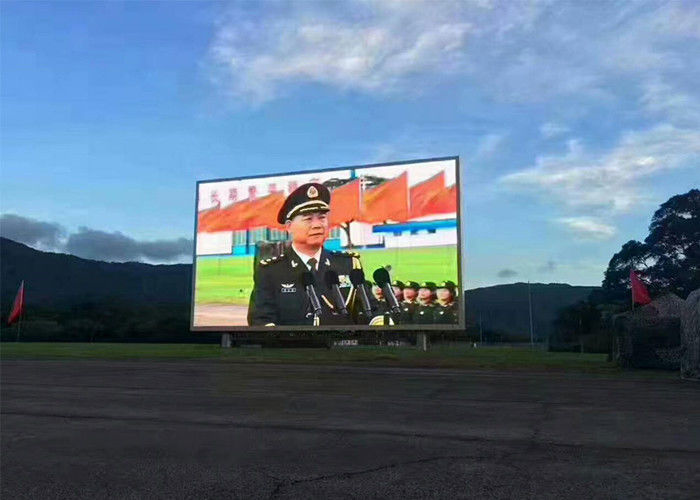

Outdoor Big commercial Full color LED Advertising Dispaly P10 building led
sign
Description
P10 SMD outdoor full color LED display screen adopts physical SMT technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Features:
1: High brightness over 6000nits by using Epistar big LED chip from Taiwan;
2: High color output: 16 bit color so the video,images shown on the LED screen is very fresh and vivid.It catches the eyes of more audiences,making your advertising very effient.
3: High refresh rate over 1500HZ/S;when you take photoes or video,no scaning lines.
4 High waterproof function: IP65 front and IP54 back.Our cabinet backdoor has special cover,no need make additional frame to protect waterproof from the rear side.
We react in 1 day,our sales will submit a good proposal based on your project,welcome to send an inquiry and visit our factory in Shenzhen,China.
| Pixel Pitch | 10mm |
| Pixel Density | 10000dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Module Size | 320mm x 160mm |
| Module Resolution | 32dots x 16dots |
| Drive Mode | 1/4Scan, Constant Current |
| Brightness | 6000cd/sqm |
| Viewing Distance | 10m-100m |
| Interface Port | HUB-75 |
| Module Weight | 0.4KG/pcs |
| Viewing Angle | H: 120°; V:120° |
| Refresh Rate | 2000HZ |
| Standard Cabinet Size | 960mm x 960mm |
| Cabinet Weight | 40KG/pcs |
| Frame Rate | 120frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 600W/sqm |
| Ave. Power Consumption | 250W/sqm |
| Working Temperature | -20℃~+65℃ |
| Blind Spot Rate | <1/10000 |
| Life Span | >100,000 Hours |
| Waterproof | IP65 |
| Operating Humidity | 10%~95% |
| Control Method | Synchronous, 3G, WIFI, USB |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 , Win10 etc |
Applications:
| Business Organizations | Supermarket, shopping malls, star-rated hotels, travel agencies |
| Financial Organizations | Banks, insurance companies, hospital, schools |
| Public Places | Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings |
| Entertainments | Movie theaters, stages |
