P10 outdoor full color led display outside adveryising led board factory

P10 outdoor full color led display outside adveryising led board factory

Product Details:
Place of Origin: China
Brand Name: HJY
Certification: CE FCC
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Packaging Details: wooden case
Delivery Time: 15-20 days after receiving deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 square meter per month
Contact Now

Detail Information

Detail Information

Led Module Size: 160*160mm Module Resolution: 16*16 Dot Leds: 346 Driving: 1/4 Scan Brightness: 7000nits Warranty: 2 Years

Product Description

Product Description

P10 outdoor full color led display outside adveryising led board

parameters:

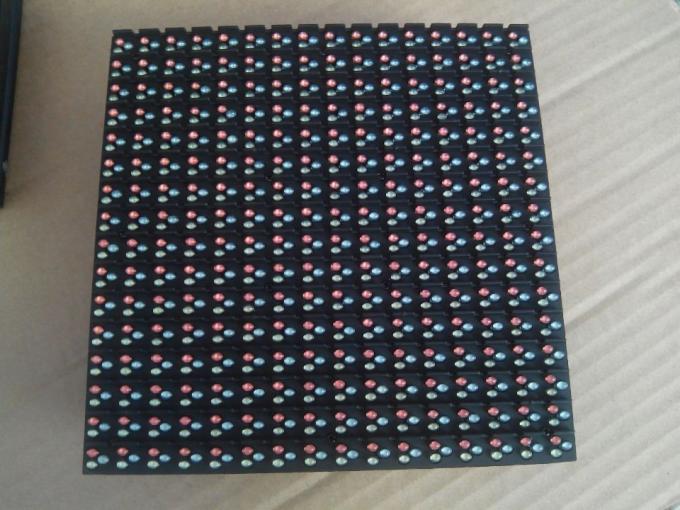

P10 outdoor led module
Product typeP10
Pixel pitch10mm
Pixel constitution1R1G1B
LED package modeDIP
Pixel density10000dot/m2
Scan mode1/4 scan
Brightness> 7000 cd/m2
Module resolution16*16 dot
Module size160mm*160mm
Max. consumption800W/m2
Ave. consumption320W/m2
Viewing angleHorizontal 120°/Vertical 50°
CabinetCustomized (size, color, design etc.)
Control MethodSynchronous
Frame frequency>= 60Hz
Refresh Rate>= 400Hz,Max. 2000Hz
Grey level>= 4 grade
Brightness adjustmentManual or Auto 100 grade
Working temperature-10 OC — +45 OC
Working voltageAC220V±10%;50Hz(AC110V optional)
Video interfaceVGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc.
Communication distanceNetwork cable<=100m; Multimode Fiber<=500m; Single mode Fiber<=10km
Average fault-free5000hours
Life span100000hours
Defect ratio<=0.1‰
control systemDVI display card + full color controller card


P10 outdoor full color led display outside adveryising led board

P10 outdoor full color led display outside adveryising led board advantage:

1)  High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2)  Best equality, have the excellent consistency of light.
3)  To pictures and character, have clear, exquisite and real display effect.
4)  Big viewing angle to 120-150 degree at horizontal line, 120-150 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5)  Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

Contact me to get price and more details now!
