Detail Information
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HJY |
| Certification: | FCC CE |
| Model Number: | P6 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1sqm |
| Packaging Details: | Wooden case or flight case,or according to client's requirement |
| Delivery Time: | 15-20days after receiving deposit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000sqm per month |
|
Detail Information |
Detail Information
Product Description
Product Description
Outdoor large commerical advertising P6 Full Color LED Display
| 1 | Pitch size | 6mm |
|---|---|---|
| 2 | Module size | 192mm*192mm |
| 3 | Module pixel(dots) | 32*32 dot |
| 4 | Pixel configuration | 1Red,1Green,1Blue SMD 3-in-1 |
| 5 | Color scale | 65536degree/1.07 billion colors |
| 6 | Pixel density | 27777pixels/square meter |
| 7 | View angle(H/V) | 60/120degree |
| 8 | Brightness | ≥5000cd/sqm |
| 9 | Brightness adjustment | 100level automatic or manual |
| 10 | View distance | 6--80m |
| 11 | Power consumption | 100-1200W/sqm |
| 12 | Net weight | 45kg/square meter |
| 13 | Operating temperature | —45°C~+60°C |
| 14 | perating humidity | 10%—95%RH |
| 15 | Life time | ≥100,000hours |
| 16 | Out of control dot | ≤3/10,000 |
| 17 | Whole Display Flatness | ≤1mm Juncture |
| 18 | Exchange frame speed | >150frames per second |
| 19 | Refresh frame frequency | 600Hz |
| 20 | Control distance | Cat. 5: 120m (without repeater), single mode fiber:20km,multi mode fiber: 500m |
| 21 | Power | 110V/220V±15% 50Hz |
| 22 | Operating system | Win7 Win8 Win10 |
| 23 | Drive mode | 1/8 scan |
| 24 | Display mode | VGA640X480—VGA1600X1024 |
| 25 | Protections for outdoor display | IP65 for front, IP54 for rear |
| 26 | Maintenance way | rear access, hanging installation |
| 27 | Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
LED display module photo

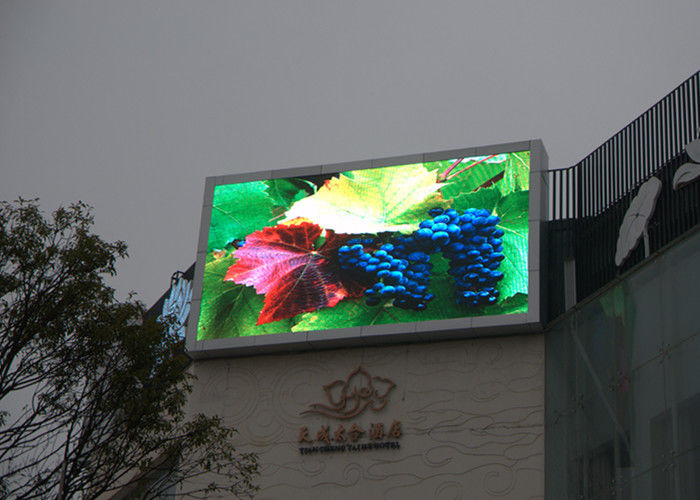

led display photo
Maintenance
Comcreating provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts. You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance. Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period.
Training
We offer training for free. Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training. We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.
Installation
User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided. We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.
Engineering training or installation assistance support at customer’s place is available, but a round-trip ticket, local accommodation of technician, staff labor cost(USD100/day if exceeding one week), cost of visa, and other expenses during the whole trip should be borne by the customer.
