Detail Information
Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HJY |
Certification: | CE FCC |
Model Number: | P2.5 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1sqm |
Packaging Details: | wooden case or flight case |
Delivery Time: | 15-20days after receiving deposit |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 3000sqm per month |
Detail Information |
Detail Information
Product Description
Product Description

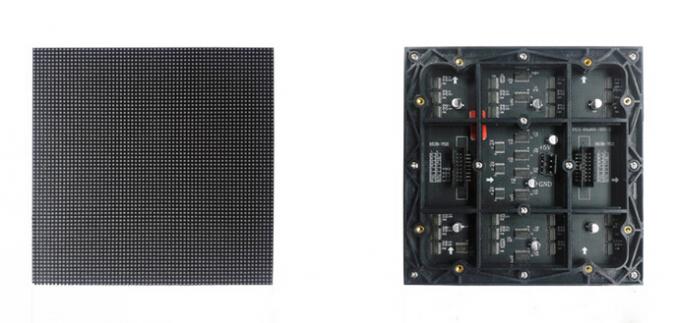

Factory Custom Electronics Full Color LED Display P2.5 indoor led video wall
Features
High-quality bright LED dot matrix module with painted ink color evenly is not easy to be damaged and ensures the best viewing angle
Can undertake single point, single lamp maintenance and the cost is low
Besides, high definition effect comes with uniform luminance and soft color is suitable for indoor range viewing closely.
Temperature:-20°-+50°. Humidity:≤90%. MTBF:≥10,000houes. Lifespan:≥50,000hours. Defective,Dot Rage<0.0001.
Constant voltage chip driving reduces power consumption and prompts stability. The simple module design is low cost and easy to maintain.
Neat appearance, light weight, small size, and 5v low voltage power supply system all make the module more attractive.
type | SMD2121 |
composition | 1R1G1B |
Scan method | 16S |
resolution | 64 x 64dots (W x H) |
Pixel pitch | 2.5mm |
Leasing LED video screen Module size | 160 x160 mm |
Module quantity | 3x3 |
resolution | 192 x192(W x H) |
Cabinet size | 480 x480mm |
Waterproof grade | IP43 |
Supply voltage | AC 220/110 ± 10 %,47~63Hz |
Panel Type and Material | Die-casting aluminum |
Best viewing distance | 10-55m |
Maximum power | 1500W /m2 |
Viewing angle | 140°/120° |
Brightness | 2000cd/m2 |
Pixel density | 62052dot/m2 |
Control system | Synchronous/A synchronization System |
working temperature | -20º C to +50º C |
Working humidity | 20 % to 90 % |
lifespan | 100,000 hours |
Frame frequency | 60Hz |
installation | Hanging/Fixed with support bracket |
certification | CE, ROSH |
Our service
1. After-sales service:
1) Service principles: Response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After the Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips, etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of the part installation scheme, we will coordinate with users. Our company can ensure the consistency of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with the client to find solutions.
2) Our company can train users based on the manual. The training includes system use, system maintenance, and equipment protection.
