Name: 5mm Pixel Pitch indoor Full Color Led Screen Smd3528 1/16 Scan Fixed Intallation
Brand: HJY

Outdoor High Resolution LED Display IP65 1/8 Scan Driving 320*160mm Size factory

Product Details:

Place of Origin:

China

Brand Name:

HJY

Certification:

CE FCC

Model Number:

Payment & Shipping Terms:

Minimum Order Quantity:

negotioable

Packaging Details:

Flight case

Delivery Time:

15-20 days after receiving deposit

Payment Terms:

T/T, Western Union, MoneyGram

Supply Ability:

1000sqm/month

Product Description

P5 outdoor full color high resolution led display 320*160mm excellent led

screen

Screen Parameter

No	Item	Parameter
1	Standard Caninet Size	960mm960mm180mm
2	Cabinet Weight	35KGS
3	Brightness/Adjustment	≥5500cd/m², Level 16- Automatic / Level 100-Manual operation
4	View Angle	≥120°(Vertical),≥120°(Horizontal)
5	Best View Distance	5-15m
6	Grey Scale	Within 65536 Step
7	Frame Frequency	≥60Hz
8	Refresh Rate	≥1920Hz
9	Signal Input Source	Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
10	Scan Mode	1/8 Scan
11	Drive IC	5124
12	Module Qty / M2	39
13	Display Color Qty	16777216
14	Continuous Working Time	>24(Hrs)
15	Screen Lifespan	>100,000(Hrs)
16	MTBF	>5000(Hrs)
17	Max. power consumption	850W/M2
18	Ave. power consumption	280W/M2
19	Out of control pixel rate	≥3/10,000(discrete distribution)
20	Control Distance	100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
21	Flatness	Screen Surface≤0.5mm,Pixel Pitch≤0.3mm
22	Operation Temperature	-10℃~+50℃
23	Working Humidity	10%~98%RH
24	Storage Temperature	-40℃~+60℃
25	Software Connection	Standard Computer Connection,Compatiable With Windows,Unix,Novell
26	protection system	Overtemperature/overload/power/image compensation/nonlinear correction
27	Working Valtage	200~240 V
28	Dielectric Strength	50HZ/1500V(AC RMS)/1min
29	Temperature Rise	Metal≤40K,Insulation≤65K , After Heat Balance
30	IP Grade	IP65
31	Computer display mode	1024*768
33	Media Player	LED Pressional Media Player

full color Outdoor tv panel p5 outdoor led board display / led tv display panel

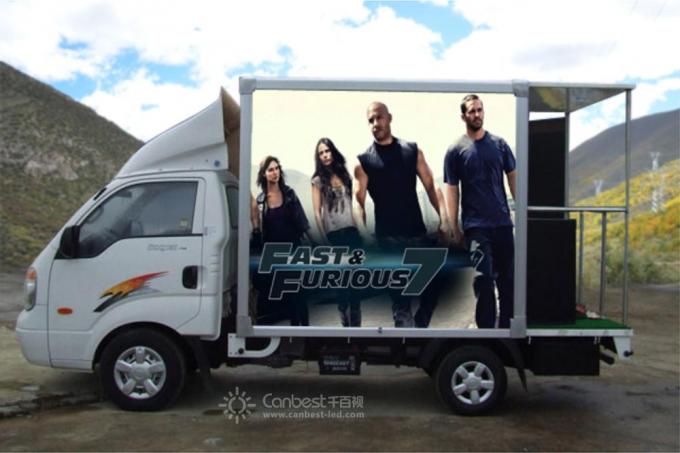

Another Application scopes of P4 P6 P8 P10 outdoor waterproof outdoor led display : Widely applied to traffic information distribution of station, quay and airport, conference, shopping-mall, brand presentation,TV-station,stage-show, concert and so on.
