8mm Pixels Outdoor Full Color Led Module 320*320mm Panel 6500 Nit Brightness factory

Product Details:
Place of Origin:	China
Brand Name:	HJY
Certification:	CE FCC
Model Number:	P8 advertising led display module
Payment & Shipping Terms:
Minimum Order Quantity:	negotiation
Packaging Details:	wooden case advertising led display module
Delivery Time:	15-20 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000sqm/month

Contact Now

Detail Information
Product Description

Detail Information

Usage: Outdoor Pixels: 8mm Screen Dimension: Customized Brightness: 6500nit Warranty: 2 Years Module Size: 320*320mm Led Chip: Nationstar Power Supply: G-energy Advertising Led Display Module

Product Description

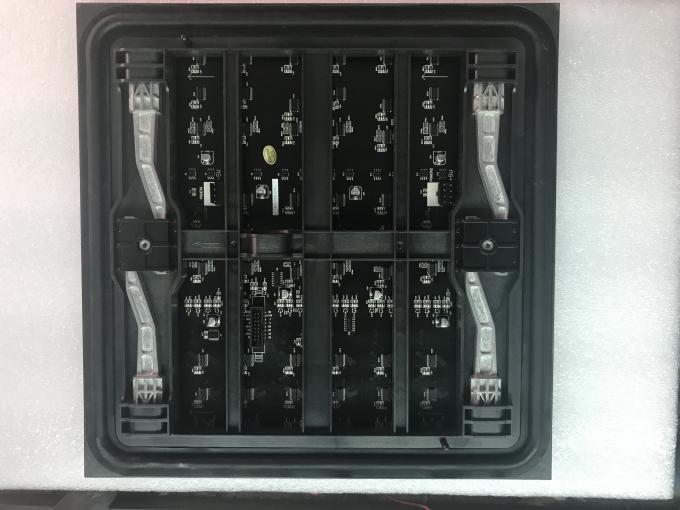

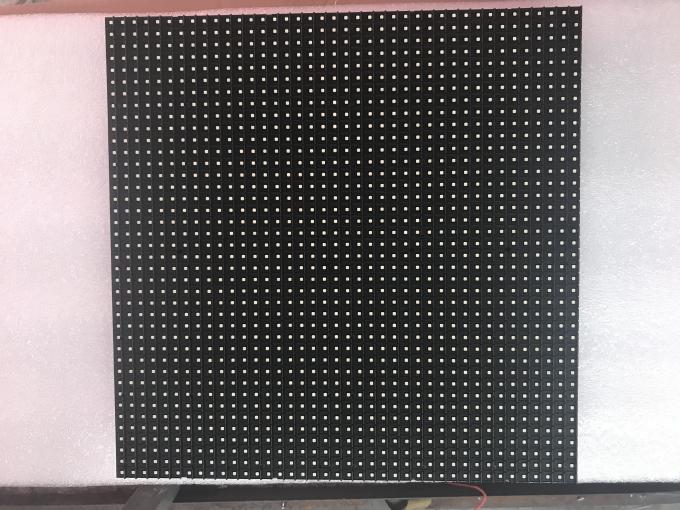

advertising led display module P8 outdoor 320*320mm led panel

Module Parameter:

Pixel density	15625dots/m²
Brightness	≥6500 cd/m²
Viewing angle	H≥160° V≥160°
Min.viewing distance	8m
Max.power consumption	1200W/m²
Avg.power consumption	600 W/m²
Working voltage	110~220VAC±15%
Interface	HUB75
Colors	16.7millon colors
Gray level	14-16bits
Frame frequency	≥60frames/s
Refresh rate	≥300Hz
MTBF	≥100000 hours
Lifespan	≥75000 hours
Protective function	Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc.
Operating temperature	-10℃ ~ +40℃
Operating humidity	10-80% no condensation
Storage temperature	-20℃ ~ +60℃
Storage humidity	10-85% no condensation
