High Definition Stadium Perimeter LED Display P6 RGB Live Show Led Screen factory

Product Details:
Place of Origin: China
Brand Name: HJY
Certification: CE FCC
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Packaging Details: wooden case
Delivery Time: 15-20 days after receiving deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000sqm per month

Detail Information

Detail Information

Pixels: 6mm Color: 1R1G1B LED Type: SMD3535 Module Size: 192mm*192mm Viewing Angle: H120 V120 Brightness: 6000nits

Product Description

Product Description



high definition outdoor stadium led screens P6 outdoor RGB live show led



display





Product Parameters

Item

P6 Outdoor LED Display

Model Number

P6

Pixel Pitch

6mm

Pixel Density(dots/m²)

27777

Pixel Configuration

1R1G1B

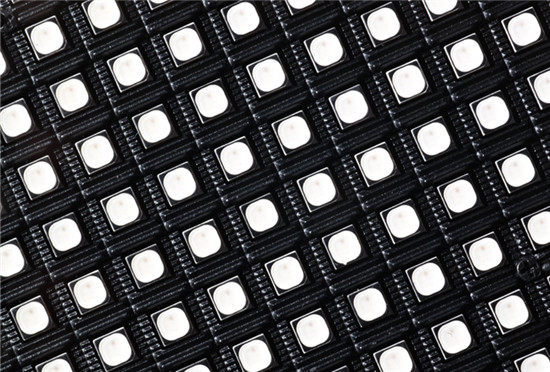

LED Type

SMD3535

Module size(mm)

192*192

Module Resolution(dots)

32*32

Min.Viewing Distance(m)

≥6

Brightness(cd/m²)

≥5500

Viewing Angle(degree)

≤140°

Average Power Consumption(w/m²)

550-850

Scan Mode

1/8

Protection Level

IP65

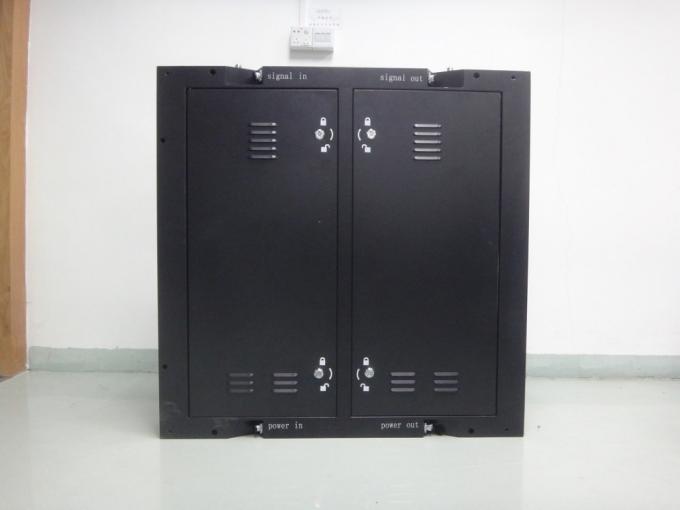

Cabinet Size(mm)

768*768

Color Temperature

The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC220 V/50HZ or AC 110V/60HZ

Refresh Rate

LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)

Color

64g color(on the condition of 4096 gray scale)

Horizontal/Vertical viewing angle

<120°

Gray Scale

Recommended 14BIT

Effective Communication Distance(without relay)

Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.


Product Show
Football Stadium Perimeter LED Screen Display P4 P6 P5 P3 Outdoor Smd LED Module
Football Stadium Perimeter LED Screen Display P4 P6 P5 P3 Outdoor Smd LED Module

System Connection Drawing

Football full color outdoor stadium perimeter advertising led display
