Name: 5mm Pixel Pitch indoor Full Color Led Screen Smd3528 1/16 Scan Fixed Intallation
Brand: HJY

High Resolution P5 LED Truck Display Large Digital Billboard Mobile Panel SMD3528 factory

Product Details:

Place of Origin:

China

Brand Name:

HJY

Certification:

CE FCC

Model Number:

Payment & Shipping Terms:

Minimum Order Quantity:

negotiable

Packaging Details:

Wooden case or flight case

Delivery Time:

15-20 days after receiving deposit

Payment Terms:

T/T, Western Union, MoneyGram

Supply Ability:

1000 square per month

Product Description

High resolution p5 led truck display large digital billboard mobile led

Product information:

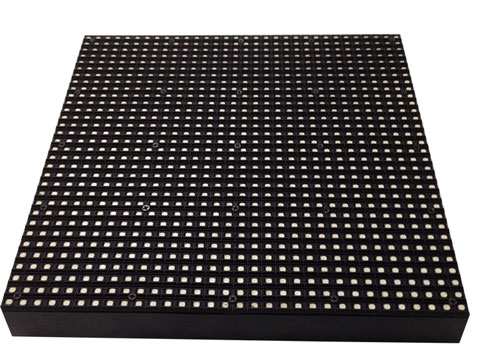

LED Module
	Pixel pitch	5mm
	Pixel configuration	1R1G1B
	LED	SMD3528
	Module size	160*160mm
	Module resolution	32*32 dots
	Scan	1/8 scan
	Application	Outdoor

LED screen
	Pixel density	40000 dots/m²
	Brightness	>6500cd/SQM
	Viewing angle	Horizontal angle: 120 ; Vertical angle: 60
	Max.power consumption	800W/sqm
	Ave.power consumption	390W/sqm
	Working voltage	100 to 240VAC, 50/60Hz
	IP Gray	IP65/IP54
	Frame frequency	≥60frames/s
	Refresh rate	≥1920HZ
	Lifespan	≥100000 hours
	Operating Temperature (°C)	-10~40
	Operating Humidity (RH)	10%~90%

Advantages
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.

2)The brightness can be adjustable to meet the need of changing environment

3)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

4)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.

5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.

6) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.

High Resolution P5 LED Truck Display Large Digital Billboard Mobile Panel SMD3528
